TSR-3191
19" Transflective Sunlight Readable Display Monitor

Features
Full consideration for touch screen installation and applications
Slim profile for any space-constricted applications
Flexible choices of touch screen, anti-glare protection glass and audio function
Versatile stand design for different environment applications
Hot key design for auto-adjustment
Hot key design for channel switch to VGA, S-video and CVBS
Optional 19" Rackmount, Rear Mount and Open Frame type

TSR-3191-OF
Open Frame

TSR-3191-R
Rear Mount

TSR-3191-P
Panel Mount

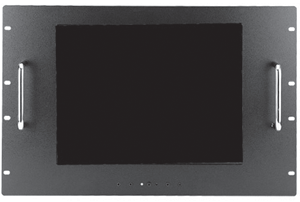

TSR-3191-
RK
19" Rackmount
Specifications
General Functions
Construction

Heavy-duty steel chassis
2mm Aluminum Front Bezel
Optional 10/15mm Thick Aluminum Front Bezel for Panel Mount

Mounting Panel mount and standard VESA mount
Rack mount ( Optional Rack-Mount Kit )
Swivel ARM, Stand
Input Signal RGB, Composite video
Control OSD (On Screen Display)
Power Supply External power adapter
Dimensions (WxHxD) 407.2 x 333 x 50 mm
LCD Display
Display Type 19" color TFT LCD
Max. Resolution 1280 x 1024

Display Color

16.7M (8bit/color)
Active Display Area 376.32 (H) x 301.056 (V)
Dot size (mm) 0.294 (H) x 0.294 (V)
Contrast Ratio 600 : 1
Luminance (cd/m2) 300 cd/m2 ; Outdoor Readibility Brightness 1200 cd/m2
Viewing angle -85~85 (H) ; -85~85 (V)

Operating Temperature

0X ~ 50XC (32X ~ 122XF)
OSD Yes
Power Consumption 38W typical, normal operation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional Video Input S-Video, Composite
Optional DVI Input Yes
Optional Touch Screen ELO Resistive, Capacitive, SAW, IR Touchscreen
Optional Mountings Optional Open Frame, Rear Mount, Panel Mount, and 19" Rackmount Types
Ordering Info
TSR-3191 19" Transflective Sunlight Readable Display Monitor, VGA input only
TSR-3191T/R TSR-3191 + ELO Resistive Touchscreen (RS-232 interface)
TSR-3191T/C TSR-3191 + ELO Capacitive Touchscreen (RS-232 interface)
TSR-3191T/S TSR-3191 + ELO SAW Touchscreen (RS-232 interface)
TSR-3191T/I TSR-3191 + ELO IR Touchscreen (RS-232 interface)
TSR-3191A TSR-3191 + Video input, S-Video, Composite
TSR-3191AT/R TSR-3191A + ELO Resistive Touchscreen (RS-232 interface)
TSR-3191AT/C TSR-3191A + ELO Capacitive Touchscreen (RS-232 interface)
TSR-3191AT/S TSR-3191A + ELO SAW Touchscreen (RS-232 interface)
TSR-3191AT/I TSR-3191A + ELO IR Touchscreen (RS-232 interface)
