TSR-3152

15" 1024x768 XGA Transflective Sunlight Readable Display Monitor

Features
	Full consideration for touch screen installation and applications
	Slim profile for any space-constricted applications
	Flexible choices of touch screen, anti-glare protection glass and audio function
	Versatile stand design for different environment applications
	Hot key design for auto-adjustment
	Hot key design for channel switch to VGA, S-video and CVBS

TSR-3152-OF
Open Frame

TSR-3152-R
Rear Mount

TSR-3152-P
Panel Mount

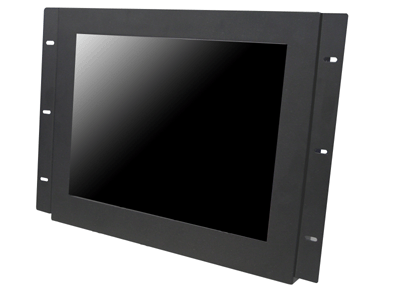

TSR-3152-RK
19" Rackmount

Specifications
General Functions
Construction	Heavy-duty steel chassis 2mm Aluminum Front Bezel Optional 10/15mm Aluminum Front Bezel for Panel Mount
Mounting	Panel mount and standard VESA mount Rack mount ( Optional Rack-Mount Kit ) Swivel ARM, Stand
Input Signal	RGB, Composite video
Control	OSD (On Screen Display)
Power Supply	External power adapter
Dimensions (WxHxD)	358.6 x 293 x 48 mm

Specification
Viewable Size Image	15"
Active Display Area (mm)	304.128 (H) x 228.096 (V)
Pixel Pitch (mm)	0.297 (H) x 0.297 (V)
Number of Pixels	1024 x 768
Contrast Ratio	700 : 1
Display Color	16.2M (6bits + FRC)
Brightness (CD/m^2)	610
Viewing Angle (CR >=10)	-80~80 (H); -70~70 (V)
Synchronization Range Horizontal / Vertical	31.5~60.0 KHz / 60~75Hz
Recommended Resolution	1024 x 768 @ 60HZ, 75HZ
Signal Connector	15 pin D-sub
Power Source	AC 100~240 V, Universal, 10%
Power Consumption	32 W typical, normal operation
Power Management	VESA DPMS Compliant
Plug & Play	VESA DDC 1/2B
Optional Video Input	S-Video, Composite, DVI
Optional DVI Input	Yes
Optional Touch Screen	IR, SAW
Optional Protection Glass (reflection rate<0.5%)	UV glass/clear type glass
Operation Temperature	0XC~50XC

Outdoor Readability

Ambient light (nit)	Brightness measure Angle	10,000	30,000	80,000
Brightness gain (BL0n)(nit)	35X	680	870	1,320
Reflectance(net)(%)		1%	0.98%	0.9%

Ordering Info

TSR-3152

15" Transflective Sunlight Readable Display Monitor, VGA input only

TSR-3152T/R

TSR-3152 + ELO Resistive Touchscreen (RS-232 interface)

TSR-3152T/C

TSR-3152 + ELO Capacitive Touchscreen (RS-232 interface)

TSR-3152T/S

TSR-3152 + ELO SAW Touchscreen (RS-232 interface)

TSR-3152T/I

TSR-3152 + ELO IR Touchscreen (RS-232 interface)

TSR-3152A

TSR-3152 + Video input, S-Video, Composite

TSR-3152AT/R

TSR-3152A + ELO Resistive Touchscreen (RS-232 interface)

TSR-3152AT/C

TSR-3152A + ELO Capacitive Touchscreen (RS-232 interface)

TSR-3152AT/S

TSR-3152A + ELO SAW Touchscreen (RS-232 interface)

TSR-3152AT/I

TSR-3152A + ELO IR Touchscreen (RS-232 interface)
