TSR-3064
6.4" Transflective Sunlight Readable Display Monitor
Features Specifications Ordering Info Datasheet

Features
Full consideration for touch screen installation and applications
Slim profile for any space-constricted applications
Flexible choices of touch screen, anti-glare protection glass and audio function
Versatile stand design for different environment applications
Hot key design for auto-adjustment
Hot key design for channel switch to VGA, S-video and CVBS

TSR-3064-OF
Open Frame

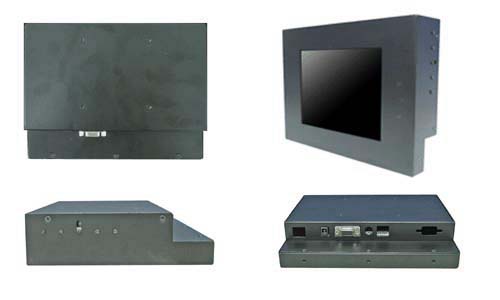

TSR-3064-R
Rear Mount

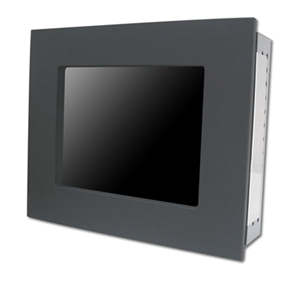

TSR-3064-P
Panel Mount

TSR-3064
-DRK
19" Rackmount
Specifications
General Functions
Construction Heavy-duty steel chassis
1.5mm Thin Aluminum Front Bezel
Optional 5/10mm Thick Aluminum Front Bezel for Panel Mount
Mounting Panel mount and standard VESA mount
Rack mount ( Optional Rack-Mount Kit )
Swivel ARM, Stand
Input Signal RGB, Composite video
Control OSD (On Screen Display)
Power Supply External power adapter
Dimensions (WxHxD) 200 x 140 x 45 mm
LCD Display
Display Type 6.4" color TFT LCD
Max. Resolution 640 x 480

Display Color

At least 262,144 colors
Active Display Area 129.6 (H) x 97.44 (V) mm
Dot size (mm) 0.203 (H) x 0.203 (V)
Contrast Ratio 120 : 1
Luminance (cd/m2) 375 cd/m2 ; Outdoor Readibility Brightness 1200 cd/m2
Viewing angle -55~55 (H) ; -35~15 (V)

Synchronization Range
Horizontal / Vertical

31.5~37.9KHz / 60~75Hz
Recommended Resolution 640 x 480 @ 60Hz, 75Hz

Signal Connector

15 pin D-sub
Power Source AC100~240 V, Universal,10%

Operating Temperature

0X ~ 50XC (32X ~ 122XF)
OSD Yes
Power Consumption 15W typical, normal operation
Power Management VESA DPMS Compliant
Plug & Play VESA DDC 1/2B
Optional Video Input S-Video, Composite
Optional Touch Screen ELO Resistive, Capacitive, SAW Touchscreen
Optional Mountings Optional Open Frame, Rear Mount, Panel Mount, and 19" Rackmount Types
Ordering Info
TSR-3064 6.4" Transflective Sunlight Readable Display Monitor, VGA input only
TSR-3064T/R TSR-3064 + ELO Resistive Touchscreen (RS-232 interface)
TSR-3064T/C TSR-3064 + ELO Capacitive Touchscreen (RS-232 interface)
TSR-3064T/S TSR-3064 + ELO SAW Touchscreen (RS-232 interface)
TSR-3064A TSR-3064 + Video input, S-Video, Composite
TSR-3064AT/R TSR-3064A + ELO Resistive Touchscreen (RS-232 interface)
TSR-3064AT/C TSR-3064A + ELO Capacitive Touchscreen (RS-232 interface)
TSR-3064AT/S TSR-3064A + ELO SAW Touchscreen (RS-232 interface)
