x86 Rugged Tablet PC Product Guide

Specifications Ordering Info Datasheet

Operating System Windows XP Embedded / Windows XP Professional / Windows XP Professional Embedded
Processor VIA Eden 1GHz (optional VIA Eden 1.5GHz ULV)
Chipsets VIA CX700M (with video acceleration)
Memory DDRII400 256MB on board or SO-DIMM support up to 1GB (Factory Option)
Storage Compact Flash Memory Card or 2.5" HDD
Display 10.4" SVGA/XGA Transmissive TFT LCD
Touch Panel 4-wire resistive touch panel
Main Keyboard Navigation Key + Function Key + Numeric Key + Power Button
Wireless 802.11b/g WLAN (miniPCI) module built-in with integral antenna Bluetooth class 2, v2.0+EDR built-in with integral antenna
Audio System CX700M build-in audio, use high definition external codec
Main Battery Swappable battery pack of 6 li-ion 18650 2400mAh cells (3S2P).
Support 3 hrs battery life (3 hrs benchmark)

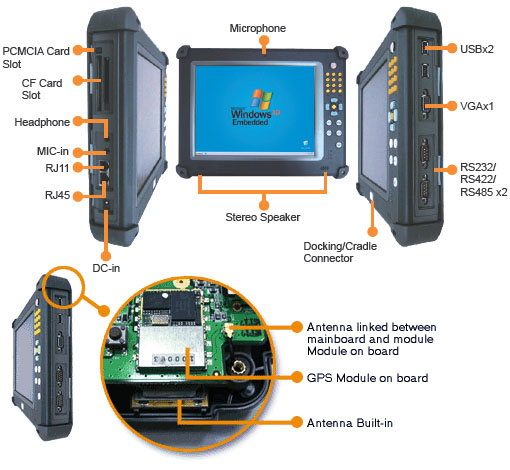

I/O Ports 2 x USB 2.0 host connector
2 x RS-232/422/485One
1 x VGA output
1 x CF Type II slot
1 x PCMCIA Type II slot, support CardBus 2.1
1 x Internal mono microphone
1 x Internal stereo speaker
1 x RJ45 for 10/100/1000Mb Ethernet
1 x RJ11for 56kbps v.92/k56 flex modem
1 x audio jack for stereo headphone
1 x audio jack for microphone
1 x DC-In
1 x docking connector
Power Adapter Universal AC 90V ~ 265V, 47~63Hz input; 19V, 3.16 A output
Physical 310x236x42 mm, 2.61kg
Environment Operating Temperature -20�XC to 60�XC
Storage Temperature -40�XC to +70�XC
Operating Humidity 5% ~ 95%
Rugged Spec. IP64/5, 3 ft drop, MIL-STD-810F, MIL-STD-461E
Compliance CE, FCC, UL ,VCCI, SRRC, TUV, CCC
Ordering Info
UMS-2800-CF 10.4" Rugged Tablet PC with VIA Eden 1GHz, 256 MB DDR, WLAN Bluetooth 2.0 and XP Embedded in 2GB CF storage.
UMS-800-HD 10.4" Rugged Tablet PC with VIA Eden 1GHz, 256MB DDR, WLAN, Bluetooth 2.0 and XP professional Embedded in 40GB 2.5"HDD.

Packing List
1 x AC adaptor & power cord
1 x Stylus
1 x Battery
