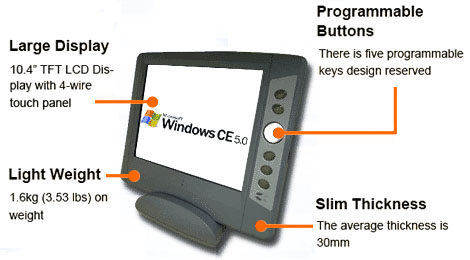

RISC Tablet PC

Specifications Ordering Info Datasheet

Operating System Windows CE 5.0
Processor Intel PXA270 520MHz
Memory 64MB Flash
Display 10.4 TFT LCD SVGA (800 x 600)
Touch Panel 4-wire resistive touch panel
Main Keyboard Power On/Off switch (suspend/resume mode) (reserve on/off function)
Five software programmable button on the fron bezel
One navigation button with enter function
One hardware/software reset button
Wireless Built-in Wireless 802.11g SIP module with internal antenna
I/O Ports 1 x RS-232 port Two USB type A connectors
1 x PCMCIA type II slot One SD slot (push-push slot)
1 x Audio jack for external headphone
1 x Audio jack for external microphone
1 x VGA out connector
1 x DC-in jack
1 x Docking connector for cradle
1 x Fast Ethernet (10/100M bps) LAN port
Main Battery Removable Li-ion 2200mAh 4 cells pack. Support 4.5 hrs battery
life (4.5 hrs benchmark)
Power Adapter Universal AC 90V ~ 265V, 47~63Hz input, 19V, 3.16A for output voltage & current
Physical Support one hinge stand
293mm(W) x 235mm(H) x 30~38mm(D)
Environment Operating Temperature 0�XC to 40�XC
Storage Temperature -20�XC to +60�XC
Operating Humidity 20% ~ 80%
Rugged Spec. IP53,3 ft drop
Compliance CE, FCC, UL ,VCCI, SRRC, TUV, CCC
Ordering Info
UMS-2700 10.4" SVGA Semi-rugged Tablet PC with PXA 270 520MHz, 128MB SDRAM,CE5.0 Image in 64MB Flash, Wireless, and battery solution

Packing List
1 x AC adaptor & power cord
1 x Stylus
