19" Ultra Low Power High Brightness TFT LCD Panel

Features Specifications Dimensions

19" ultra low power industrial PPC, support high brightness TFT LCD panel , VIA ultra low power 1.5Ghz CPU, VGA / LAN / anti-vibration HDD / 6 x USB 2.0 / 6 x COM / CF slot / Mini PCI slot / PS2 KB / PS2 Mouse / Printer / 2 x Loud speakers.


Intel 1.2GHz low power CPU, IP-65,66, 67, 68, NEMA-4

Meet VESA-75, 100

wall-mount standard
6 x USB 2.0, 6 x COM, LAN, CF slot, mini PCI slot

Optional Items

Wireless LAN + Antenna (long cable type)

Wireless LAN + Antenna (standard)
LCD Panel

1 9 " TFT LCD , 1 280 x 1024 resolution , 600:1 contrast ratio, 1000 cd/m2, 16 , 7 7 million colors

View Angle 16 degree left / right, 150 degrees up / down
Front Bezel Aluminum front bezel, meet IP-65, 66, 67, 68, NEMA-4, 4X, 12 water-resistant standards
Touch Screen 5-Wire Resistive Touch screen is optional for extra cost. 4096 x 4096 resolution
Housing Ruggedized heavy-duty steel metal construction
Vibration and Shock resistant This machine is very welll designed to withstand high vibration and shock resistance
Panel-mount /
Meet VESA-75, 100 wall mount standard,
Easy Panel mount, four extra hook holes for quick hanging on wall. Desktop easel is optional
Industrial Grade Quality This is an industrial grade mainboard.
CPU Intel CPU VIA ultra low power 1.5Ghz CPU
Memory (system) Standard size is 256MB DDR SO-DIMM. Optional are 512M and 1GB DDR SO-DIMM RAM.
Video chipset Intel Extreme graphics
Intel Extreme graphics 2 with 266Mhz VGA core and 256-bit 3D engine Intel Dynamic Video Memory up to 64MB share memory
Video Memory 64MB share memory
64MB video memory for ultimate high speed for 3D / 2D graphics alleration.
Speakers / Audio Built in 2 x speakers. Intel ICH4 with Realtek ALC 650 AC 97 codec supporting 5.1 channel audio sound
HDD 40GB slim size anti-shock, anti-vibration HDD.
CD-ROM (optional) This is an optional slim size CD-ROM
Serial Ports 6 x Serial ports
5 x RS232 (COM1 ~ COM6) and 1 x RS485 (COM4)

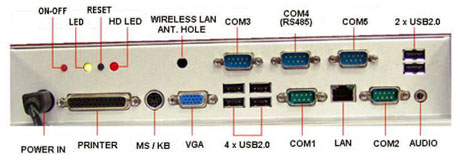

5 COM ports are external at the I/O plate. 1 is inside for touch screen use.
USB 6 x USB 2.0 high speed port
6 x USB 2.0 at the I/O plate.
Mini PCI Expansion slot One mini-PCI slot on board designed for future 802.11 b / g wireless LAN purpose.
LPT / Parallel Port This Printer port support printer interface.
Keyboard / Mouse port 1 x PS/2 support keyboard mouse
Operating Temperature 0 to 50 °C
Vibration Resistance Meet very strict IEC-60068 standard. 5 - 500 Hz at 2G random vibration life test under Windows XP operation.
Shock Resistance Meet very strict IEC-60068 shock life test at
15G acceleration for 11 msec duration under Windows XP operation
Power Supply Universal power supply supporting all AC 110 - 240V. DC power supplies are also available for your options.
Ethernet Network Intel 82540EM support ultra high speed 1000+ Mbps Gigabit LAN
Compact Flash (CF) slot 1 x Compact Flash slot for future expansion
ActiveX 8.0 / 8.1 Support ActiveX 8.0 & 8.1 for high speed
