SRPC-1210A/5050A

12.1"/15" Industrial Sun Readable Panel PC

Excellent Choice for outdoors application!

Features
	Equipped with Sun Readable LCD
	Aluminum made front panel, meets NEMA4 or IP65 standard
	Support Auto-Dimming function, display brightness will be adjusted to light source automatically

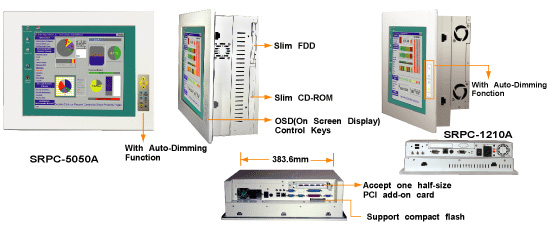

SRPC-5050A

SRPC-1210A

Specifications

General Functions

Flat Panel

SRPC-5050A	SRPC-1210A
15" high brightness TFT LCD Resolution: 1024 x 768 Brightness: 1750 cd/m2 LCD MTBF: 50,000 hours Backlight MTBF: 30000 hours	12.1" high brightness TFT LCD Resolution: 800 x 600 Brightness: 1308 cd/m2 LCD MTBF: 50,000 hours Backlight MTBF: 30000 hours

Front Panel

Aluminum front panel, meets NEMA4 / IP-65 stantard

Auto-Dimming

Supports Auto-Dimming function

Drive Bays

SRPC-5050A	SRPC-1210A
1 x Slim FDD 1 x Slim CD-ROM 1 x 2.5" HDD	1 x 2.5" HDD

Expansion Slot

Accept one half-size PCI add-on card (SRPC-5050A)

CPU Board

SRPC-5050A	Equipped with POS-370 or POS-566 POS-EDEN-400 full function SBC
SRPC-1210A	Equipped with WAFER-5822 Embedded board

Power Supply

SRPC-5050A	SRPC-5050A: UPF200-AA 200W with PFC Industrial ATX Power Supply
SRPC-1210A	SRPC-1210A: ACE-916AP Industrial AT power supply with PFC

Environmental and Mechanical
Operating Temperature	0�XC to 50�XC
Shock	10G acceleration part to part (11ms)
Vibration	5-17Hz, 0.1" double amplitude displacement 17-640Hz, 1.5G acceleration part to part
Color	White(Pantone 413C), Dark Blue (Pantone 433C)

Ordering Info

SRPC-5050A C - AL / POS370N / T-R151B
SRPC-5050A C - AL / POS-370R / T-C151
SRPC-5050A C - AL / POS-EDEN-400-64MB
SRPC-5050A C - AL / POS-566

SRPC-1210A C - AL / WAFER-5822 / 128 / 916AP / T-R (T-R121B)
SRPC-1210A C - AL / WAFER-5822 / 128 / 916AP / T-C (T-C121)

Color Code: D : Dark Blue; W : White

Option:

RK-150: Rack Mount Kit
ARM-31: VLoading capacity from 7 to 14kgs
