Unique rear
panel hinge design decreasing the maintenance cost, time
and expense
Removable 3.5"
HDD module
Gigabit Ethernet support
One CompactFlash®
Type II socket
IP 65 compliant aluminum
front panel

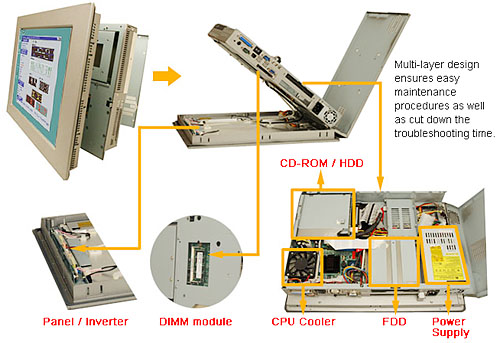

Unique Rear Hinge

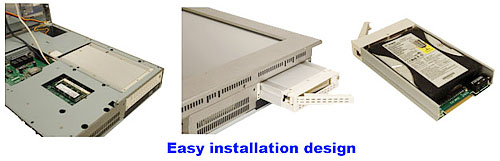

Removal HDD Bay

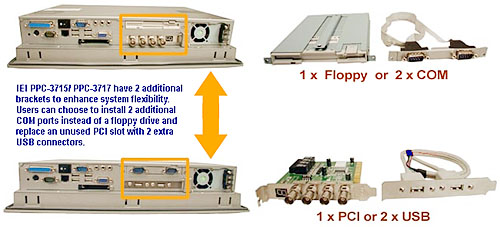

Flexible Design
Diverse Power Inputs
Our
Panel PCs support diverse power inputs which easily
adapt to industrial environments.
User-Accessible CF Slot
PPC-3717 has a CF slot on the bottom panel. It makes
users install or replace CF card simply and easily.

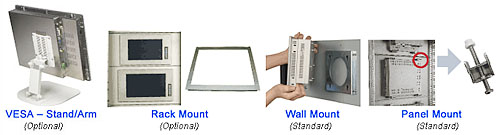

IQ Mount Support
CPU Board �V Enano-6612
Enano-6612
is an excellent solution based on Pentium M processor
for an embedded system. It is an ideal design for low
power consumption and space-critical applications.
Specifications
CPU Board
Enano-6612
CPU
Socket-479
based Intel® Pentium® M / Celeron® M support
FSB 400 MHz up to 2.1GHz
Chipset
SiS® 661CX + SiS
964
Memory
1
x DDR 400/333MHz SO-DIMM socket up to 1GB
VGA
SiS661CX support dual
display
SSD
CF
Type II
Drive
Bay
�E2 x 2.5" SATA/IDE
HDD bay
�E1 x 3.5" SATA / IDE removable HDD bay
�E1 x Slim Type CD-ROM bay
�E1 x Slim Type FDD bay
Ethernet
1
x Realtek RTL8110S Gigabit Ethernet controller
Audio
AC '97
2.3 Realtek ALC 655
I/O
�E1
x RS-232/422/485 ports
�E1 x RS-232 ports
�E4 x USB 2.0 ports
�E1 x PS/2 ports (KB/MS)
�E1 x VGA out
�E1 x LPT
�E1 x LAN
�E3 x Audio (Lin-in, Line-out, MIC-in)
�E1 x IDE
�E2 x SATA
Expansion
Slot
1 x PCI slot
Touch
Screen
Optional
5-wire resistive type with RS-232 interface
