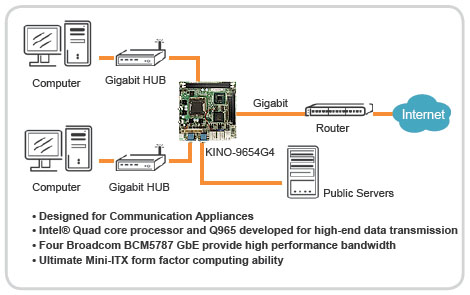

Mini-ITX Motherboard, Intel® Core™2 Extreme CPU with VGA, Four PCIe GbE, USB 2.0 and SATAII

Features Specifications Ordering Info Datasheet

Mini-ITX Form Factor and RoHS compliance
Intel® Core™2 Extreme processor in the LGA 775 package
Integrated Intel® GMA 3000 graphics engine that offers adequate display quality via
Intel® Q965
Four High performance PCI Express Gigabit Ethernet controller
Dual channel DDRII 533/667/800 MHz SDRAM support up to 4GB
4 x RS-232, 6 x USB 2.0 and 4 x SATAII
CPU LGA 775 Intel® Core™2 Extreme, Core™2 Quad, Core™2 Duo, Pentium® D, Celeron® D with 533/800/1066MHz FSB
System Chipset Intel® Q965 + ICH8
System Memory
2 x 240-PIN Dual channel DDRII 533/667/800 MHz up to 4GB

Four Broadcom BCM5787M PCIe GbE chipsets

I/O Interface 4 x RS-232
6 x USB 2.0
1 x IDE
2 x PS2 for KB/MS
Digital I/O 8-bit digital I/O, 4-bit input/ 4-bit output
IrDA 1 x IrDA by pin header
Expansions 1 x PCIe x 16
Display Interface VGA Intgrated in Intel® Q965
Super I/O IT8712F
Audio 7.1 channel HD audio kit with Realtek ALC883 codec supports dual audio streams
Watchdog Timer Software programmable supports 1 ~255 sec. System reset
Power Supply ATX Support
Power Consumption 5V@6.62A, 12V@7.56A, 3.3V@ 5.15A(Intel Core2 Extreme QX6700 2.66GHz/1066MHz CPU with 1GB DDR2 800MHz)

Operation: 0 ~ 60 ° C (32 ~ 140 ° F)

Humidity Operation: 5% ~ 95% non-condensing

170mm x 170mm


GW: 1000g; NW: 400g

Ordering Info
KINO-9654G4-R10 Mini-ITX Motherboard, Intel® Core™2 Extreme, Core™2 Quad, Core™2 Duo CPU with VGA, Four PCIe GbE, USB 2.0 and SATAII
CB-USB02-RS Dual USB Cable
AC-KIT-883HD-R10 7.1 Channel HD Audio Kit with Realtek ALC883 supports dual audio streams
CF-520-RS CPU Cooler ( 115mm x 115mm x 67mm ,115W)
CF-775A-RS CPU Cooler (92mm x 92mm x 73mm, 130W)
SDVO-100VGA-R10 PCIe x16 VGA Output SDVO Card supports dual display

Packing List
1 x KINO-9654G4 Single Board Computer 1 x RS-232 Cable
(P/N: 32200-000049-RS)
1 x Mini Jumper Pack 1 x I/O Shielding
1 x ATA66/100 Flat Cable (P/N: 32200-008800-RS) 1 x Utility CD
2 x SATA cable (P/N: 32000-0628000-RS) 1 x QIG
1 x SATA Power cable (P/N: 32100-088600-RS)
