ECW-180B
3.5" WAFER Series Fanless Embedded System with CompactFlash Slot only

Features Specifications Ordering Info Datasheet

Features
RoHS compliant design
Fanless solutions for AMD® and VIA ® processors
IQuiet operation with heat pipe thermal control
Easy-accessible CF openings at the bottom
Specifications
Model No. ECW-180BS1 ECW-180BS2 ECW-180BS3 ECW-180BS4
 Mainboard WAFER-LX WAFER-GX WAFER-LUKE WAFER-MARK
 CPU AMD® Geode® LX800 500MHz
AMD® Geode® GX466 333MHz VIA® LUKE® 1GHz VIA® MARK® 800MHz
 System
 Chipset
AMD® CS5536 AMD® CS5536 VIA® VT8237R+ VIA®VT82C686B
 System  Memory 1 x 200-pin DDR 333/400MHz SO-DIMM SDRAM socket support up to 1GB 1 x 200-pin DDR 266MHz SO-DIMM SDRAM socket support up to 1GB 1 x 200-pin DDR 333/400MHz SO-DIMM SDRAM socket support up to 1GB 1x 144-pin SO-DIMM SDRAM socket support up to 512MB
 Ethernet 10/100Base-T dual RTL8100C 10/100Base-T dual RTL8100C 10/100/1000Base-T dual RTL8110S 10/100Base-T dual RTL8100C
 Display CRT integrated in
AMD® Geode LX800
CRT integrated in
AMD® Geode GX466
CRT integrated in
VIA® LUKE 1G
CRT integrated in
VIA® MARK 800
 USB 2 x USB 2.0
compliant
2 x USB 2.0
compliant
2 x USB 2.0
compliant
2 x USB 1.1
compliant
  Extension 1 x PC/104 module
  Storage Compact Flash socket for type I/II CompactFlash disk/ 2 x 2.5 HDD
 Chassis  Construction Heavy duty metal
 System  Cooling Fanless with heatsink and heat pipe
 Power Supply Internal DC-to-DC power converter, input voltage:12V DC.
WD series input voltage:9~36V DC
External power adaptor, input voltage: 90VAC ~ 240VAC@50~60Hz, 45W
 Operating  Shock 3G acceleration peak to peak (11ms)
 Operation  Vibration MIL-STD-810F 514.5C-1
 Operation  Temperature 0~50° C(with industrial grade compactflash)
 Operation  Humidity 10% ~ 90%
 Color S: Sliver grey
 Weight 1.8 kg / 2.2 kg
 Dimensions 163mm x 200mm x 60mm (DxWxH)
 EMC FCC, CE Class A
  Extension 1 x PC/104 module
  Storage CompactFlash socket for type I/II CompactFlash disk
 Chassis  Construction Heavy duty metal
 System  Cooling 2 x 5cm 2 ball bearing fan
 Power Supply * Internal DC-to-DC power converter, input voltage: 12V DC
External power adaptor, input voltage: 100V AC ~ 240V AC@50~60Hz
 Operating  Shock 3G acceleration peak to peak (11ms)
 Operation  Vibration MIL-STD-810F 514.5C-1
 Operation  Temperature 0~50℃ (with industrial grade compact flash)
 Operation  Humidity 10% ~ 90%
 Color S: Sliver grey
 Dimensions 163mm x 200mm x 60mm (DxWxH)
 EMC FCC, CE Class A

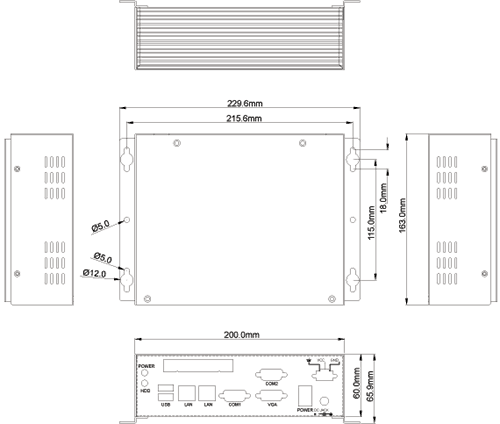

Dimensions (Unit:mm)
Ordering Info
DC 12V input
ECW-180BS1 CF only embedded system with WAFER-LX, AMD Geode LX-800 500MHz CPU, fanless, DC 12V input, sliver grey, RoHS
ECW-180BS2 CF only embedded system with WAFER-GX, AMD Geode GX-466 333MHz CPU, fanless, DC 12V input, silver grey, RoHS
ECW-180BS3 CF only embedded system with WAFER-LUKE, VIA LUKE 1GHz CPU,fanless, DC 12V input, sliver grey, RoHS
ECW-180BS4 CF only embedded system with WAFER-MARK, VIA MARK 800MHz CPU, fanless, DC 12V input, sliver grey, RoHS
DC 9~36V input
ECW-180BS1WD CF only embedded system with WAFER-LX, AMD Geode LX-800 500MHz CPU, fanless, DC 9~36V input, sliver grey, RoHS
ECW-180BS2WD CF only embedded system with WAFER-GX, AMD Geode GX-466 333MHz CPU, fanless, DC 9~36V input, sliver grey, RoHS
ECW-180BS3WD CF only embedded system with WAFER-LUKE, VIA LUKE 1GHz CPU,fanless, DC 9~36V input, sliver grey, RoHS
ECW-180BS4WD CF only embedded system with WAFER-MARK, VIA MARK 800MHz CPU, fanless, DC 9~36V input, sliver grey, RoHS
Note : 9~36VDC input models do not include AC-DC power adapter in package.
