ECW-180A
WAFER Series Embedded System

Features Specifications Ordering Info Datasheet

Features
RoHS compliant design
Built-in DC-to-DC power converter
Intel, VIA, AMD solutions available
Easy-accessible CF openings at the bottom
2 x 5cm ball bearing cooling fans
Specifications
Model No. ECW-180AS1 ECW-180AS2
 CPU AMD® Geode® LX800 500MHz
AMD® Geode® GX466 333MHz
 System
 Chipset
AMD® CS5536 AMD® CS5536
 System  Memory 1 x 200-pin DDR 333/400MHz SO-DIMM SDRAM socket up to 1GB 1 x 200-pin DDR 266/333MHz SO-DIMM SDRAM socket up to 1GB
 Ethernet 10/100Base-T dual RTL8100C 10/100Base-T dual RTL8100C
 Display CRT integrated in
AMD® Geode LX800
CRT integrated in
AMD® Geode GX466
 USB 2 x USB 2.0 compliant 2 x USB 2.0 compliant
 Weight 1.4 kg / 2.2 kg (Net/ Gross)
Model No. ECW-180AS3 ECW-180AS4 ECW-180AS5X ECW-180AS5S
 CPU VIA® LUKE® 1GHz
VIA® MARK® 800MHz Intel® Celeron® M 1.5GHz Socket 479 Intel® Pentium® M/Celeron® M CPU up to 2GHz 400/533 MHz FSB
 System
 Chipset
VIA® VT8237R+ VIA®VT82C686B SiS 661CX + SiS 964 SiS 661CX + SiS 964
 System  Memory 1 x 200-pin DDR 333/400MHz SO-DIMM SDRAM socket up to 1GB 1x 144-pin SO-DIMM SDRAM socket support up to 512MB 1 x 200-pin DDR SO-DIMM 400/333MHz SDRAM up to 1GB 1 x 200-pin DDR 333/400MHz SO-DIMM SDRAM socket support up to 1GB
 Ethernet 10/100/1000Base-T dual RTL8110S Dual RTL8100C for 10/100Mbps ethernet Realtek RTL8110S GbE 10/100/1000Base-T RTL8110S
 Display CRT integrated in VIA LUKE 1G CRT integrated in VIA MARK 800 CRT integrated in SiS 661CX CRT integrated in
SiS® 661CX
 USB 2 x USB 2.0
compliant
2 x USB1.1
compliant
2 x USB 2.0
compliant
2 x USB 2.0
compliant
 Weight 1.4 kg / 2.2 kg (Net/ Gross)
  Extension 1 x PC/104 module
  Storage CompactFlash socket for type I/II CompactFlash disk
 Chassis  Construction Heavy duty metal
 System  Cooling 2 x 5cm 2 ball bearing fan
 Power Supply * Internal DC-to-DC power converter, input voltage: 12V DC
External power adaptor, input voltage: 100V AC ~ 240V AC@50~60Hz
 Operating  Shock 3G acceleration peak to peak (11ms)
 Operation  Vibration MIL-STD-810F 514.5C-1
 Operation  Temperature 0~50℃ (with industrial grade compact flash)
 Operation  Humidity 10% ~ 90%
 Color S: Sliver grey
 Dimensions 163mm x 200mm x 60mm (DxWxH)
 EMC FCC, CE Class A

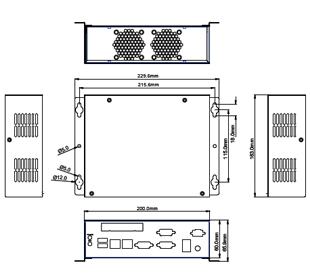

Dimensions (Unit:mm)
Ordering Info
DC 12V input
ECW-180AS1 CF only embedded system with WAFER-LX, AMD Geode LX-800 500MHz CPU, with fan, DC 12V in, sliver grey, RoHS
ECW-180AS2 CF only embedded system with WAFER-GX, AMD Geode GX-466 333MHz CPU, with fan, DC 12V in, sliver grey, RoHS
ECW-180AS3 CF only embedded system with WAFER-LUKE, VIA LUKE 1GMHz CPU, with fan, DC 12V in, sliver grey, RoHS
ECW-180AS4 CF only embedded system with WAFER-MARK, VIA MARK 800MHz CPU, with fan, DC 12V in, sliver grey, RoHS
ECW-180AS5X CF only embedded system with WAFER-6612, Intel® Celeron® M 1.5GHz CPU, with fan, DC 12V input, sliver grey, RoHS
ECW-180AS5S CF only embedded system with WAFER-6612, Socket 479 Intel® Pentium® M/Celeron® M CPU up to 2GHz, 400/533 MHz FSB, with fan, DC 12V input, sliver grey, RoHS
DC 9~36V input
ECW-180AS1WD CF only embedded system with WAFER-LX, AMD Geode LX-800 500MHz CPU, with fan, DC 9~36V in, sliver grey, RoHS
ECW-180AS2WD CF only embedded system with WAFER-GX, AMD Geode GX-466 333MHz CPU, with fan, DC 9~36VV in, sliver grey, RoHS
ECW-180AS3WD CF only embedded system with WAFER-LUKE, VIA LUKE 1GHz CPU, with fan, DC 9~36V in, sliver grey, RoHS
ECW-180AS4WD CF only embedded system with WAFER-MARK, VIA MARK 800MHz CPU, with fan, DC 9~36V in, sliver grey, RoHS
ECW-180AS5XWD CF only embedded system with WAFER-6612, Intel Celeron M 1.5GHz CPU, with fan, DC 9~36V input, sliver grey, RoHS
ECW-180AS5SWD CF only embedded system with WAFER-6612, Socket 479 Intel® Pentium® M/Celeron® M CPU up to 2GHz, 400/533 MHz FSB, with fan, DC 9~36V input, sliver grey, RoHS
